20ft Mobile Filling Station (5,000-20,000 Liters)

Capacity(liters)

5000-20000

Weight(kg)

1,000-20,000

Max Working Pressure(MPa)

0.1

+86 0538-8881799

Description

Product Description

Shengding mobile fuel station can be customized to meet customer’s needs. The capacity is from 5,000 liters to 60,000 liters, and the fuel tank compartment can be as one compartment, two compartments, or three compartments according to different fuel products. It is easy operate and maintenance. It is equipped with necessary safety detection device to ensure safe operation. We choose most competitive components to ensure good performance and long-term usage.

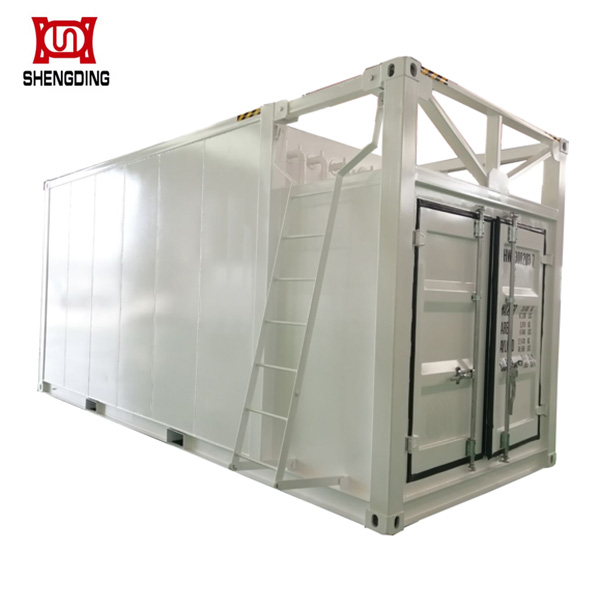

Containerised fuel station is designed as a combination of oil storage tank and pump bay. It can also be integrated with office room. With compact design, it can save space and easy for transportation.

This is our Shengding Containerised fuel station. Shengding company has 15 years of manufacturing experience for tanks and mobile fuel stations.

Specification

S.No	Configuration	Specification
1	Fuel storage tank	One single wall or double walled tank, capacity 15,000 liters ~ 20,000 liters.

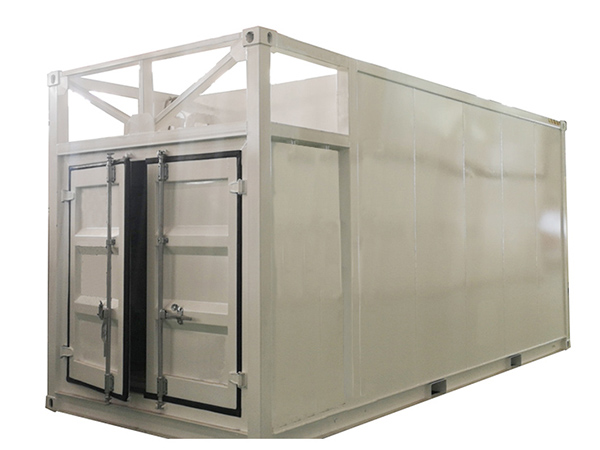

2	Container	A 20ft container includes fuel storage tank location and operation compartment.

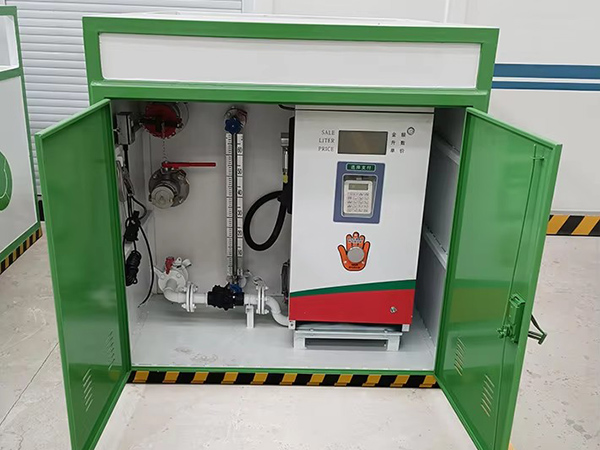

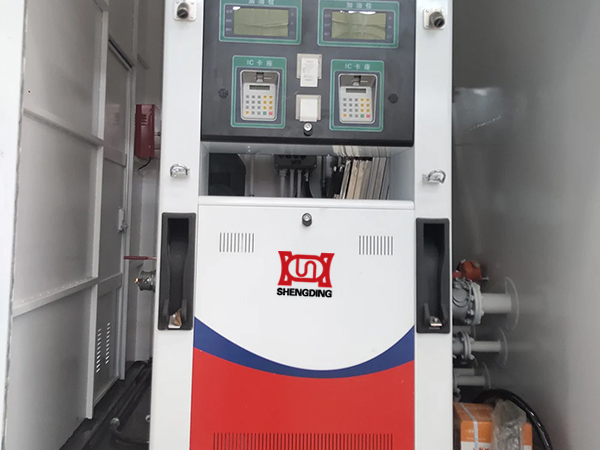

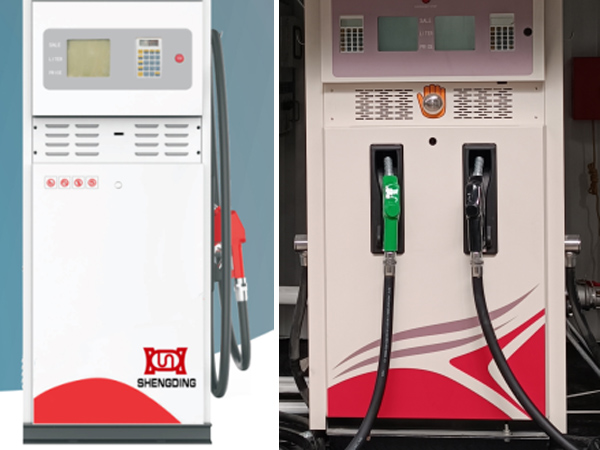

3	Fuel dispenser	1 or 2 dispenser, each with 1 or 2 filling nozzle. DN40 fuel outlet pipe, equipped with maintenance protection device.
4	Level gauge	Sight glass level gauge or electric level gauge
5	Electric system	Power control box and wire
6	Light system	Explosion-proof light
7	Safe system	One vent cap, Electrostatic grounding box Suspended fire extinguisher
8	Painting	The equipment is polished, derusted and degreased. With external three coats of painting.
9	Overall dimension	Standard 6058mm2438mm2591mm or customized
9	Other configuration	Anti-static system Oil leakage detection device Manual oil measuring system Automatic fire extinguishing system Emergency pressure relief device Power supply system Anti-overflow system Lighting Filter unit Cleaning device Safety auxiliary facilities Door

Introduction To Parts

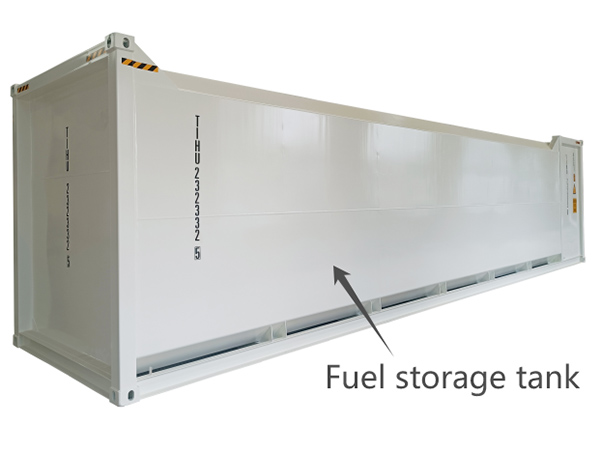

Fuel Storage Tank:

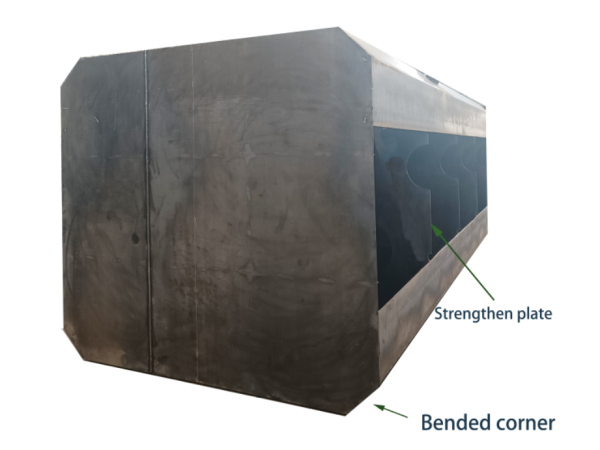

Single wall or double walled fuel storage tank. The tank body structure is square shape, with bended corner and inside baffles for improving strength, made of high quality steel plate. Square section design can get maximum tank volume for same container dimension. Tank steel thickness is 5mm-8mm.
