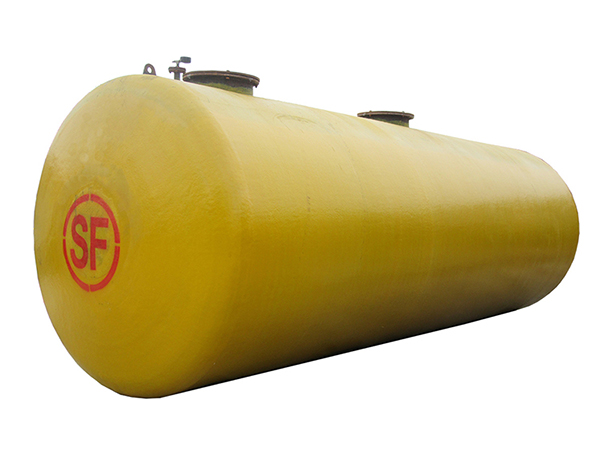

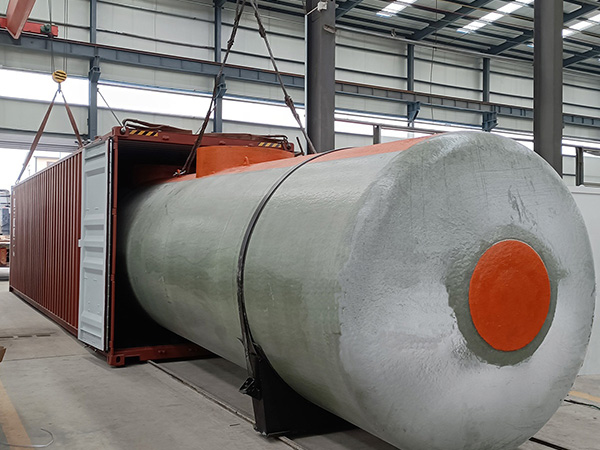

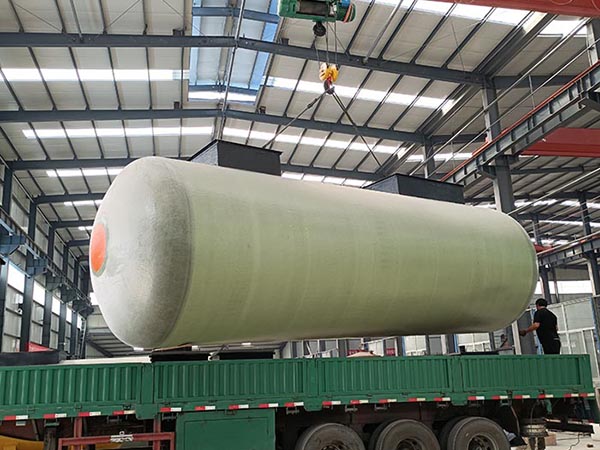

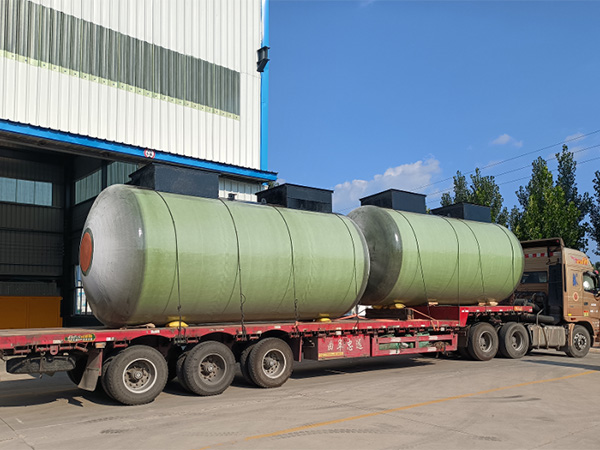

SF Double Walled Tank

The SF Double Walled Tank adopts a double-layer structure with a 0.1mm gap inside. The outer layer of FRP fiberglass ensures that the leaked material will not directly leak and pollute the soil and water source. The outer layer of FRP fiberglass will not produce electrolytic corrosion with groundwater, gasoline, diesel and other substances. The leak detector can monitor the whole process 24 hours a day to eliminate the hidden dangers of pollution. At the same time, it is convenient for the inspection and maintenance of the oil tank and protects the original environment of the soil.

Tank capacity: 5,000 liters to 100,000 liters

Tank material: Inner tank is Carbon steel or Stainless steel; secondary tank is Fiber Glass

Tank diameter: 800mm—3,000mm

Tank length: 1,500mm—17,000mm

Inlet and outlet dimension: DN50, DN65, DN80, DN100

Manhole: DN500/DN600

Feature

1. Pressure: the atmospheric temperature: - 19 ℃ ~80 ℃.Medium: oil (petroleum chemica raw materials, etc.)

2. Capacity: 1 cbm ~ 100 cbm Basicparameters and size horizontal tank

3. Safety: double walled fuel tank wall ray, anti-static, fire control measures, according to the actual circumstance of engineering by unit of choose and choose and sanitation measures.

4. Anti-corrosive:diesel storage tanks wall anti-corrosion measures shalldeterminedaccording to the tank storage medium, the outer wall corrosion protection measures according to pot of soil.

5. Type: the type can be horizontal or vertical ,it depends on customer need.

6. Layer: the oil storage tank can be single layer or double layer,it depends on customer need.

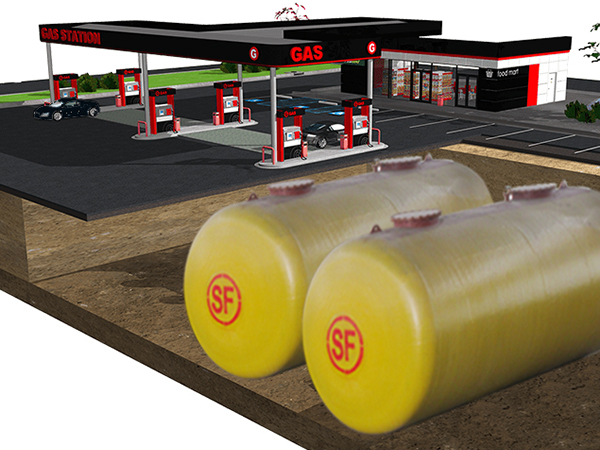

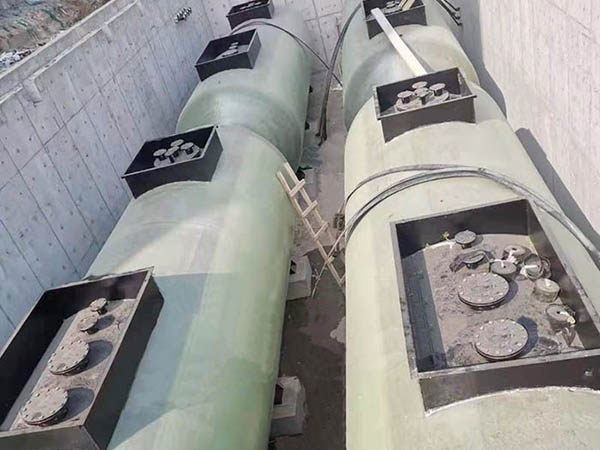

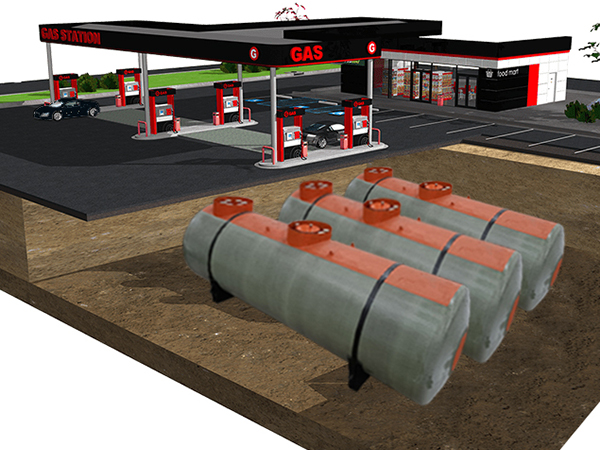

SF double-layer tanks have a long service life of 40 to 50 years due to the use of thickened steel plates and fiberglass layers. SF double-layer tanks can be tested immediately to ensure that leakage can be discovered in time and will not pollute the soil and groundwater. In addition, SF double-layer tanks can be buried underground alone without the need to build a tank pool, which can reduce the overall cost. The double-layer tanks with fiberglass coating on the outside will not cause static electricity hazards and are easy to repair.
